iDEAL U-2200IEH-XR-BLK Electric / Hydraulic UTV Lift Bench
$2,100.37
Guarantee safe & secure checkout
On all order
Description
Product Description

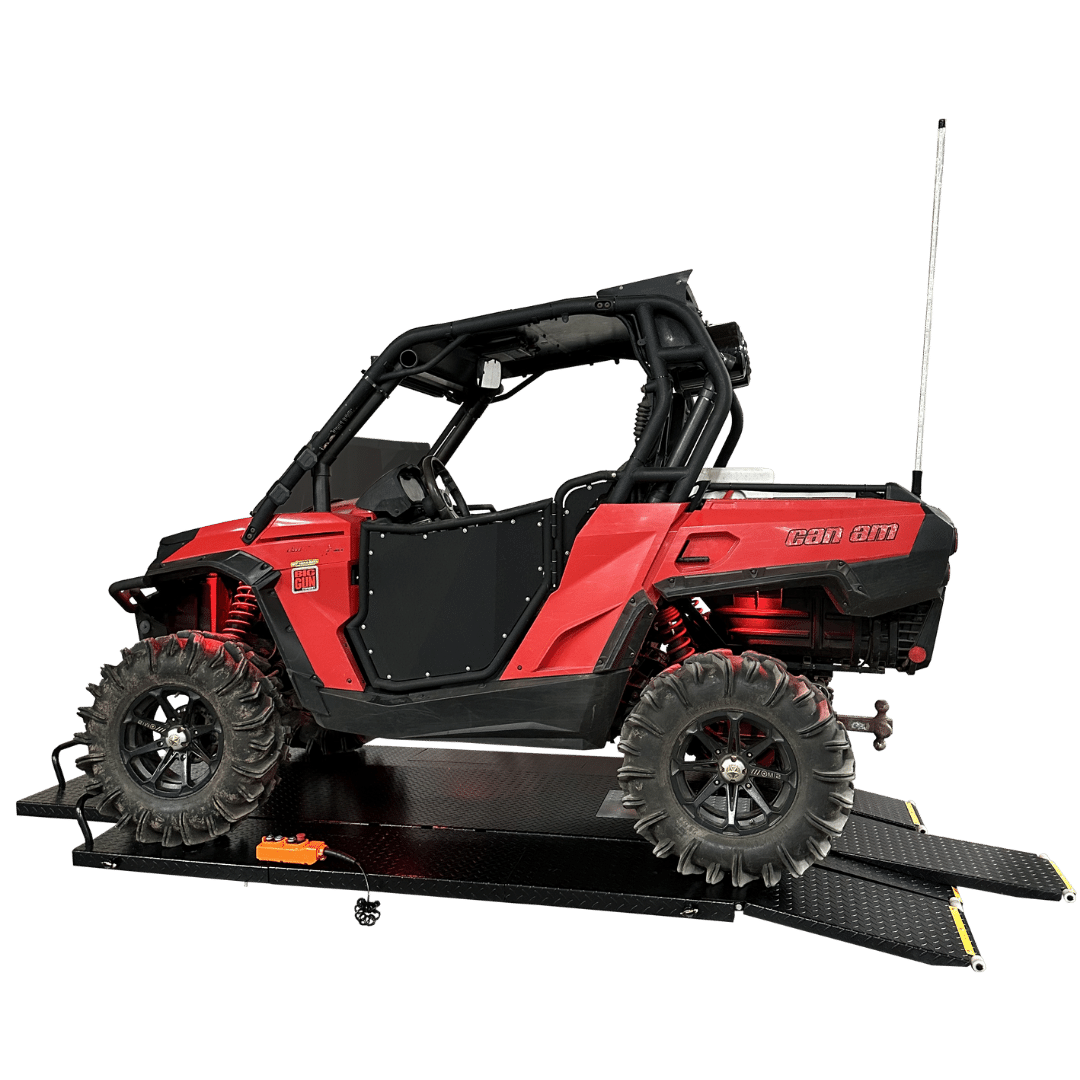

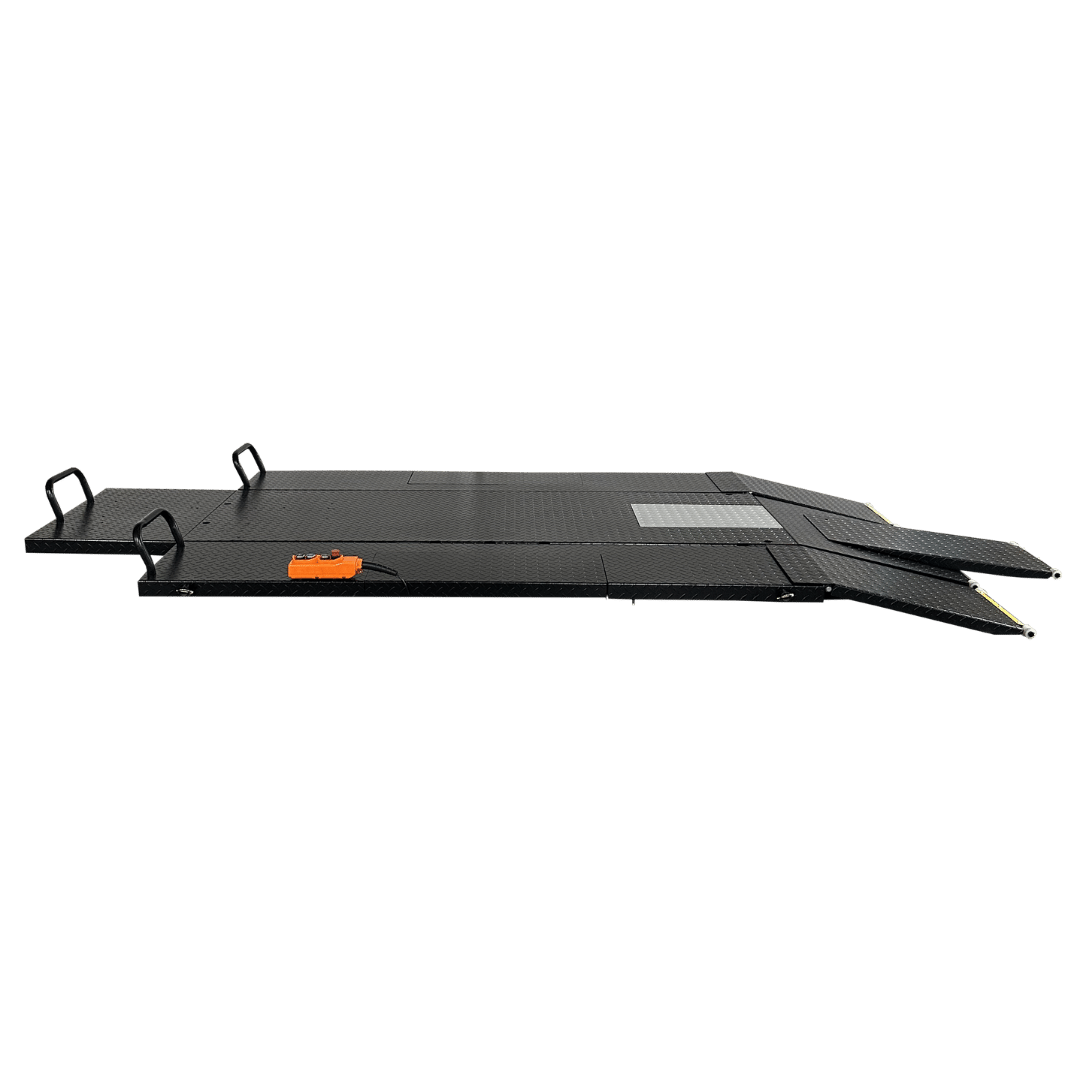

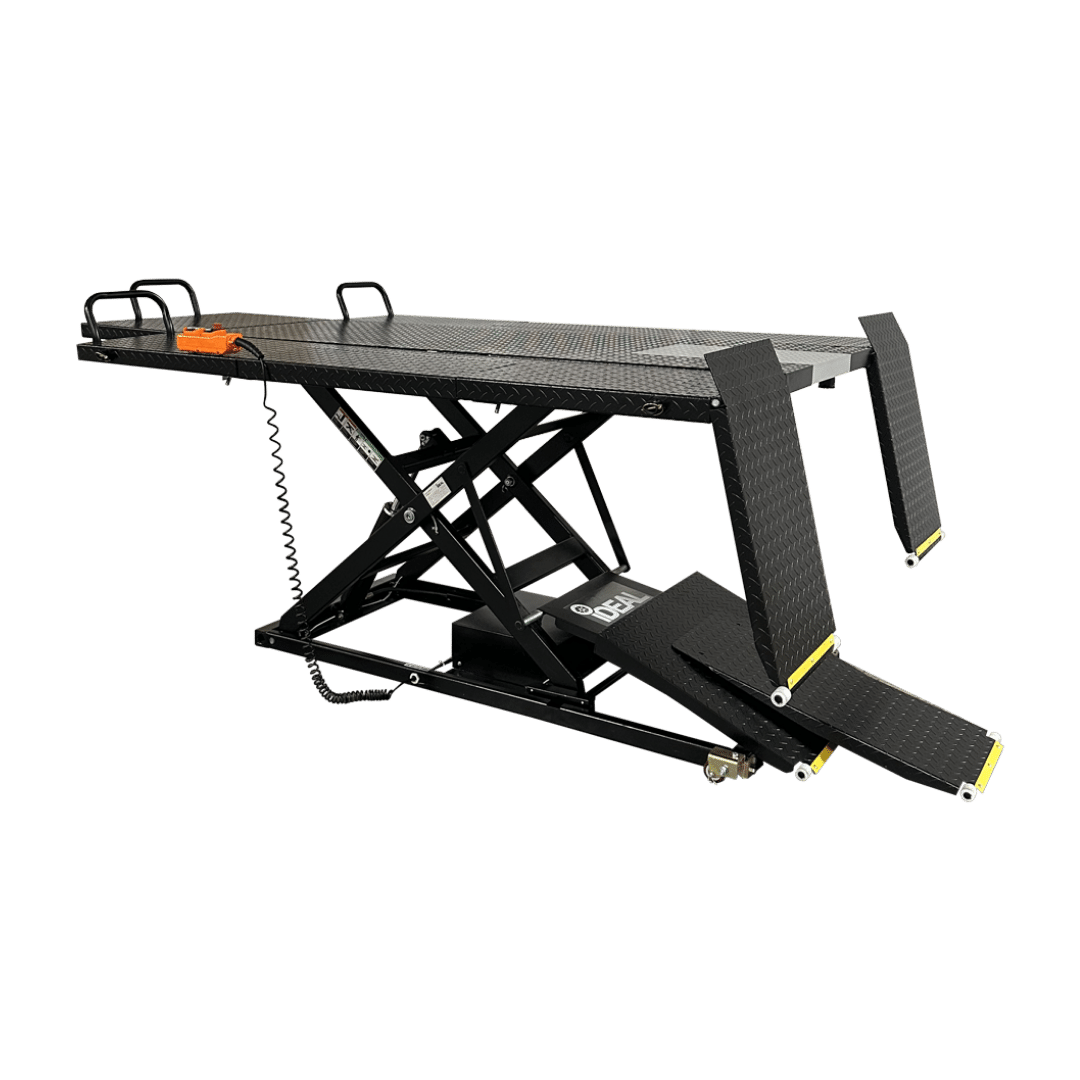

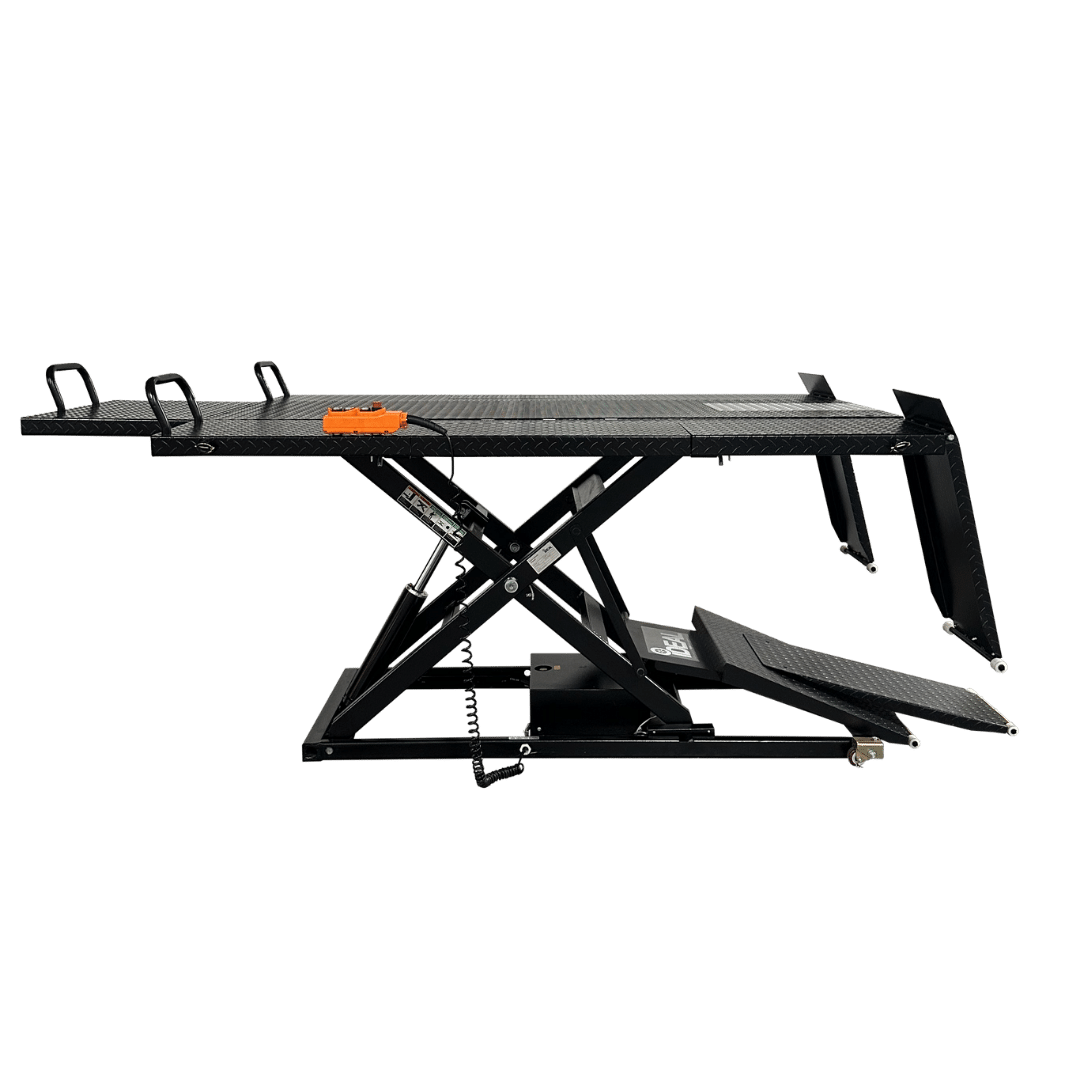

Ideal U-2200IEH-XR-BLK Electric / Hydraulic UTV Lift Bench
Product Features

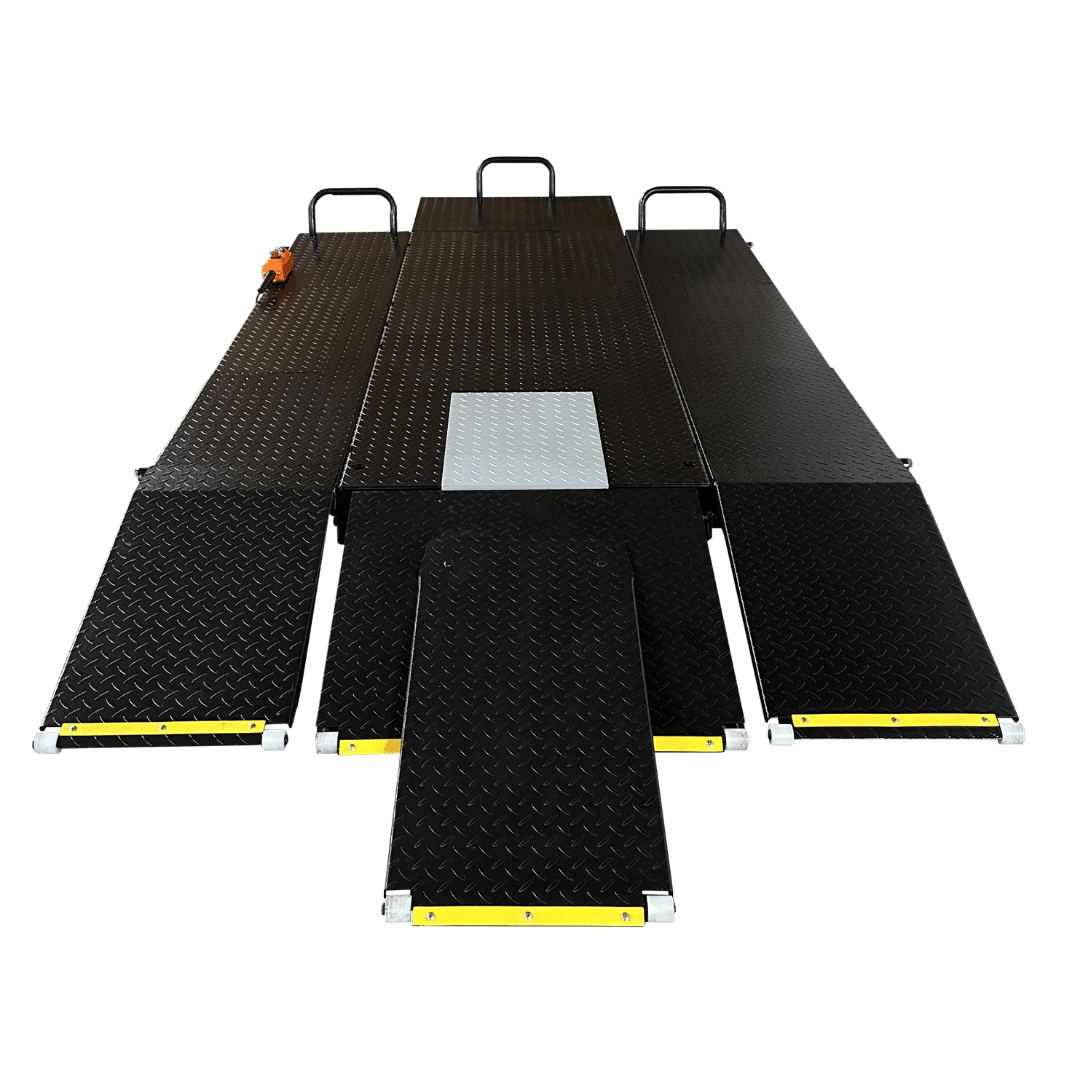

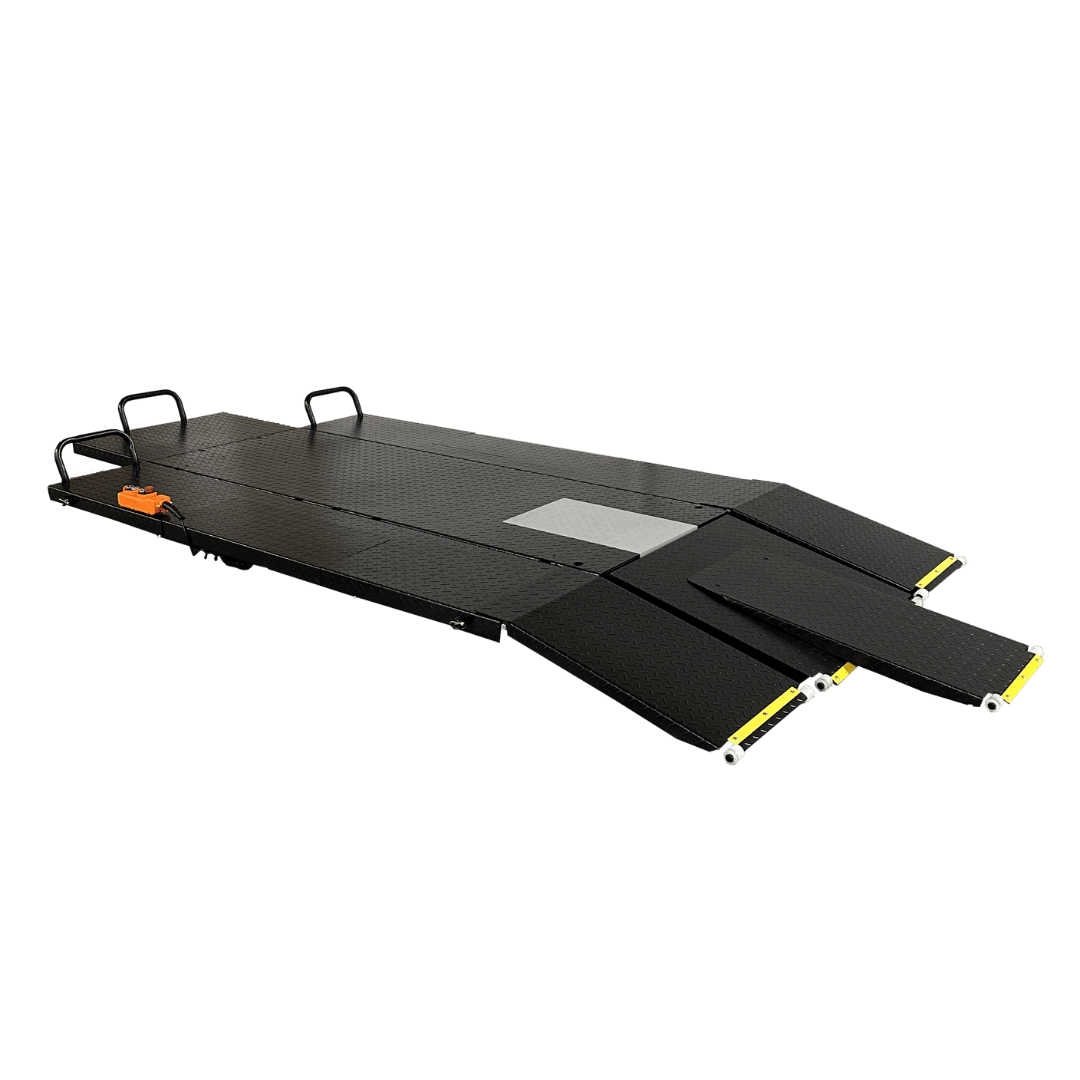

- EXCLUSIVE – ‘FULL WIDTH’ RETRACTABLE RAMP SYSTEM

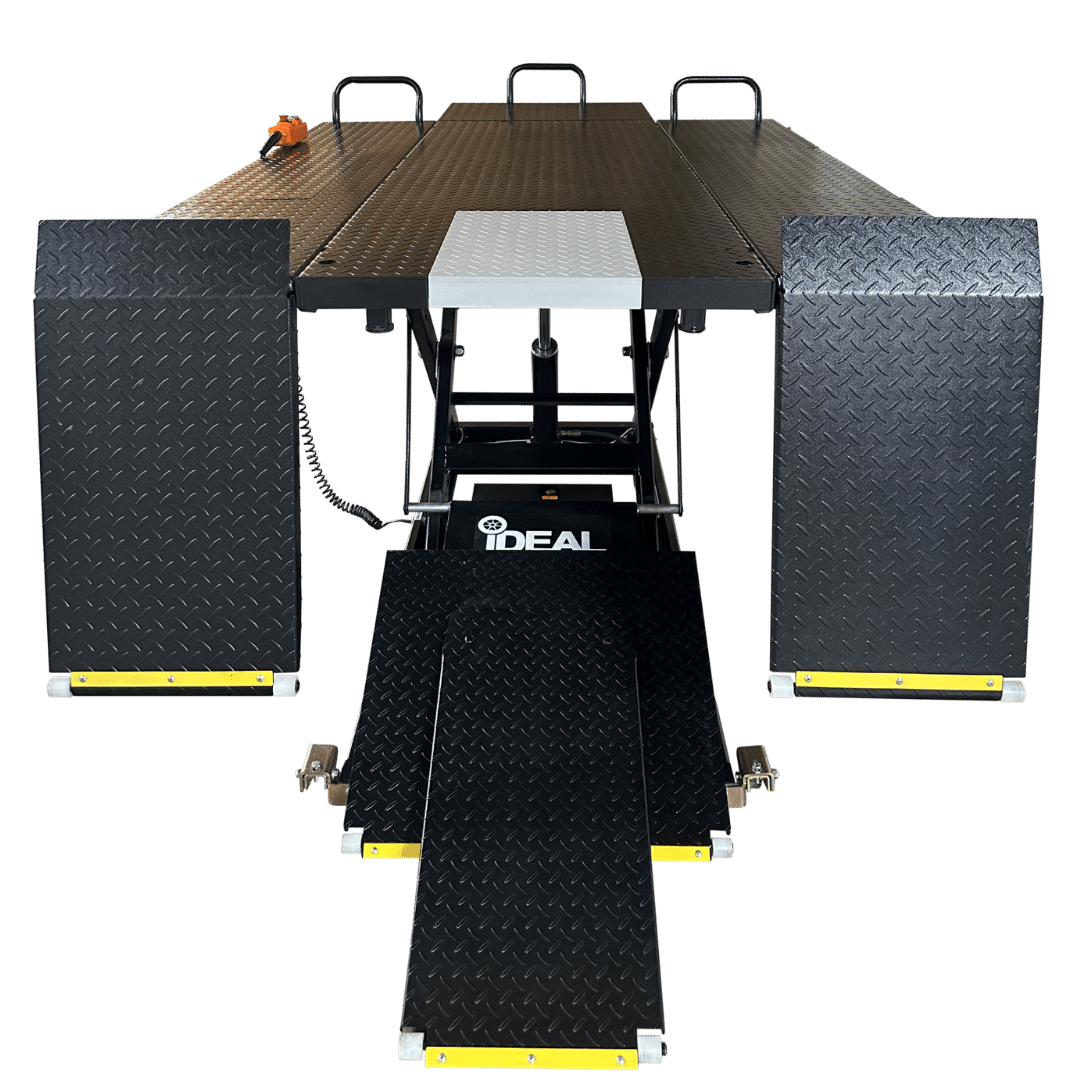

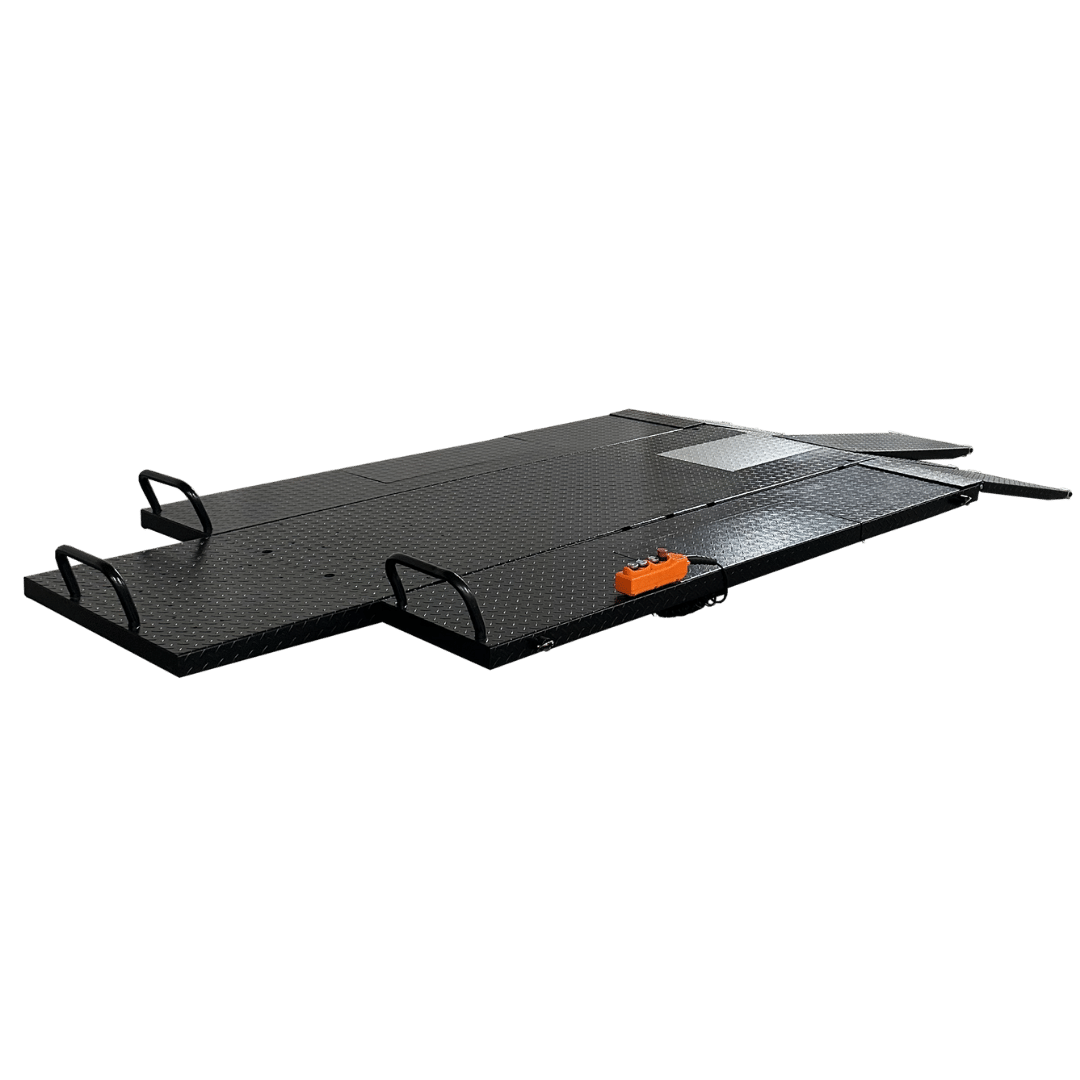

- EXCLUSIVE – SIDE EXTENSIONS W/ CENTER DROP PANELS
- 2,200 LBS. CAPACITY
- UTV BENCH OFFERS 47″ RISE HEIGHT
- 65″ X 88.6″ PLATFORM SIZE

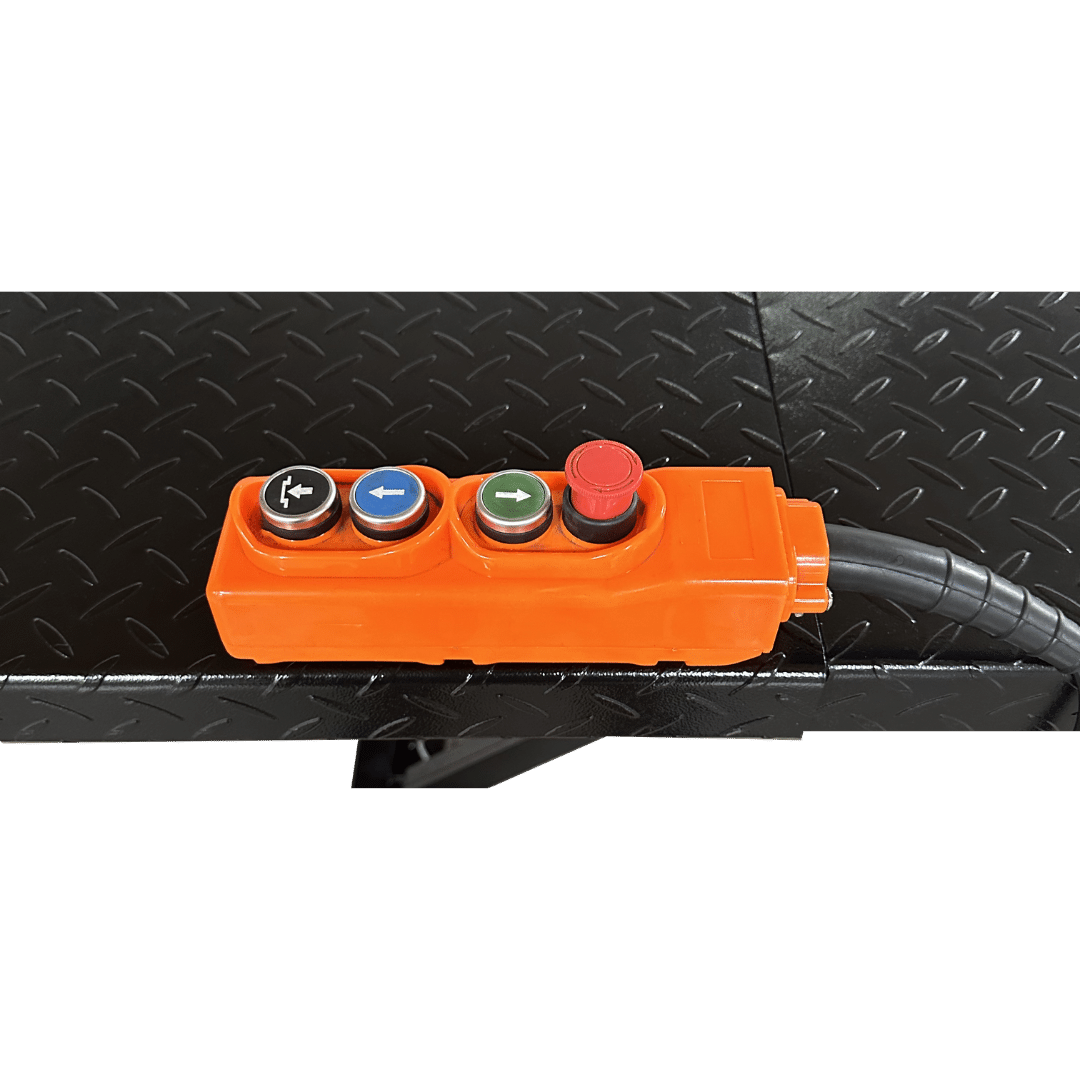

- HAND HELD REMOTE CONTROL PENDANT
- 110V INTEGRATED ELECTRIC / HYDRAULIC POWER UNIT
- MAGNETIC LOCK RELEASE
- THREE LOCKING POSITIONS

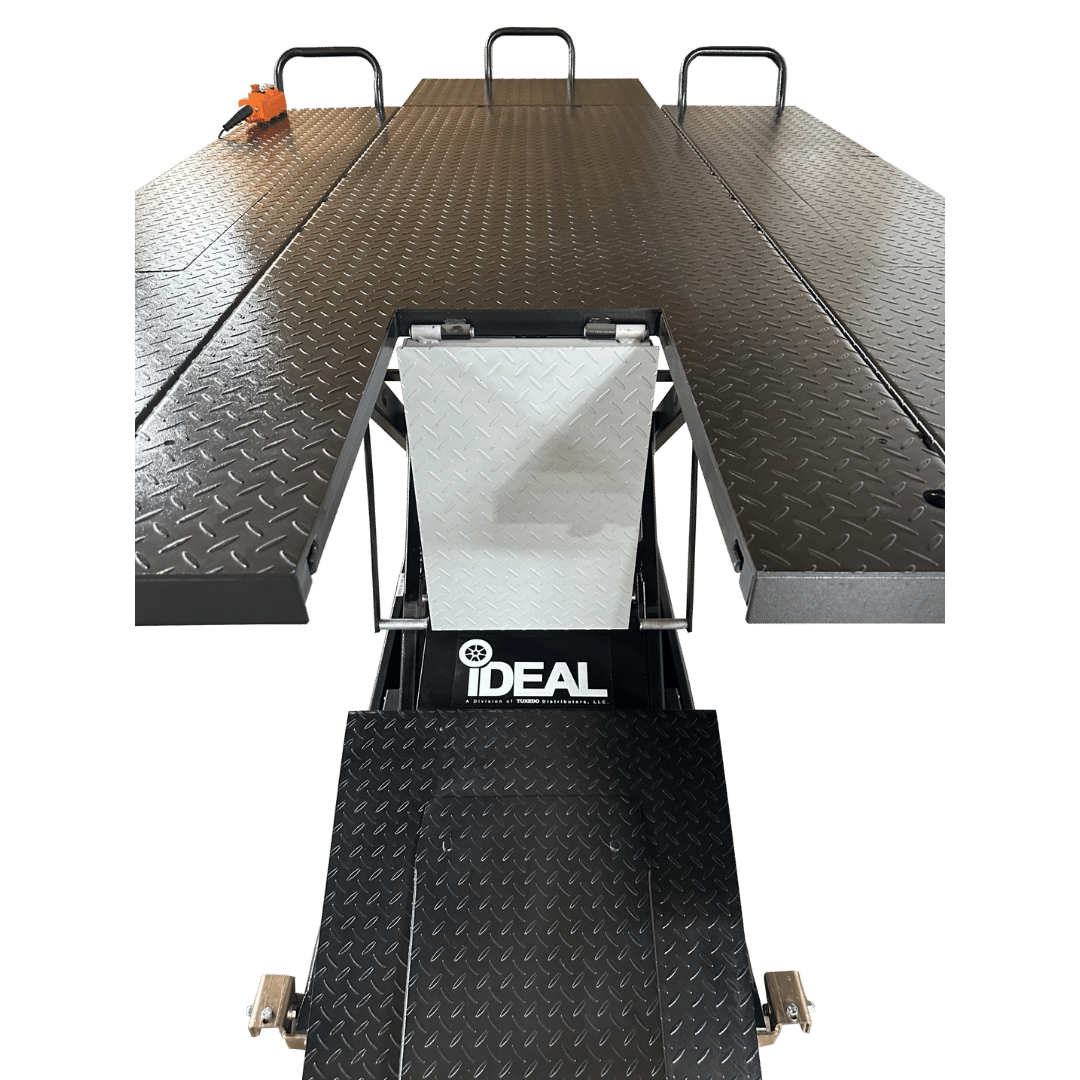

- REAR DROP DOWN SERVICE PANEL
- STABILIZER BAR

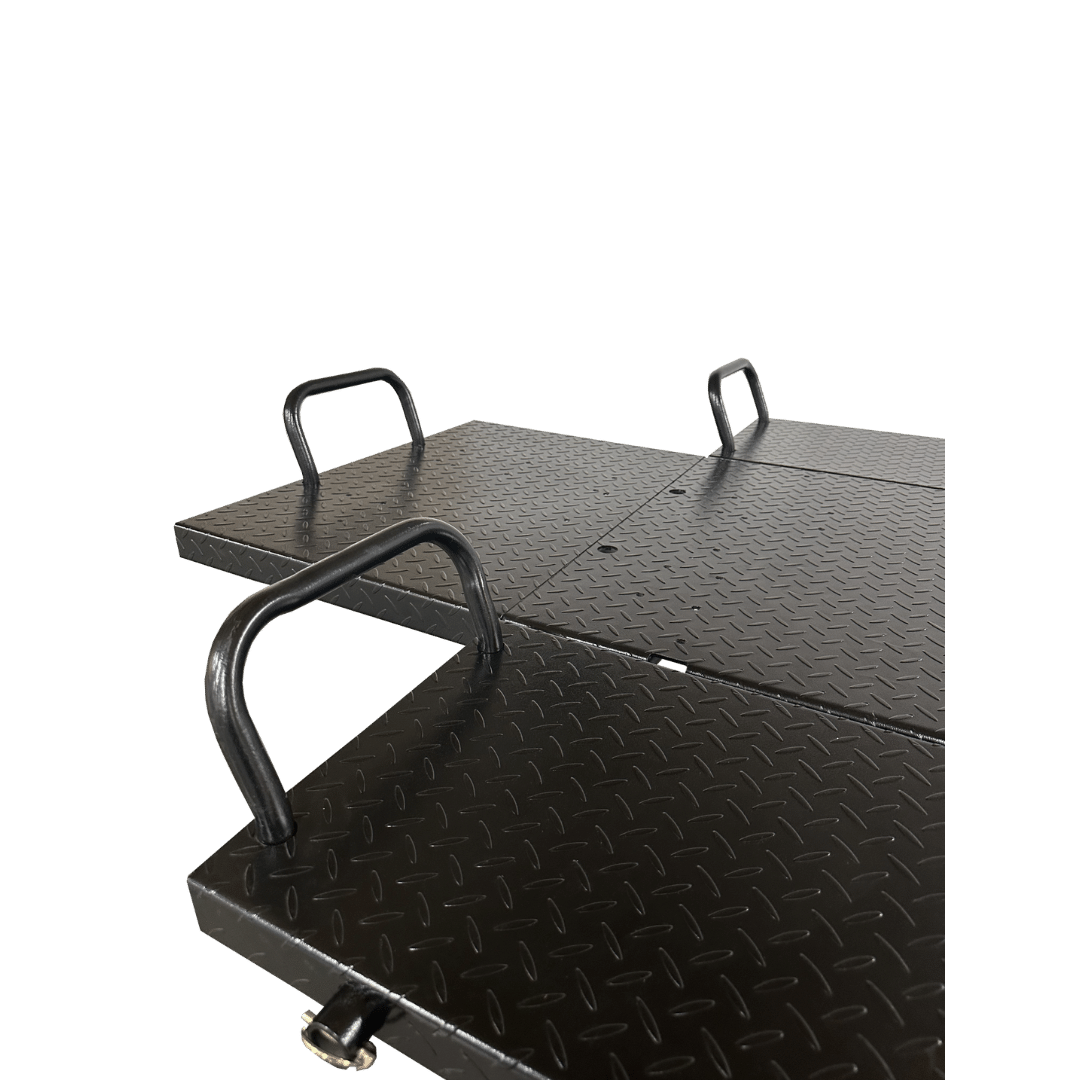

- WHEEL STOPS
- TIE-DOWN ANCHOR EYE BOLTS
- PLATFORM DESIGNED TO MOUNT OPTIONAL M-VISE OR M-CHOCK
Specifications
| Lift Model | U-2200IEH-XR-BLK |
| Capacity | 2,200 lbs |
| Min. Height | 7” |
| Max Lifting Height | 47-1/4″ |
| Overall Length w/ Ramp | 116-1/2″ |
| Overall Width | 65″ |
| Platform Size (L x W) | 88-5/8″ x 65″ |
| Lifting Time | 30S |
| Lowering Time | 30S |
| Power | 110V, 60Hz, 1 PH-18A |
| Ship Weight | 970 lbs |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California – Orlando, Florida – Norcross, Georgia – Elwood, Indiana – St. Cloud, Minnesota – Reidsville, NC – Pottsville, Pennsylvania – Alvarado, Texas – West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
Additional information
| Title | Default Title |
|---|
