Description
Product Description

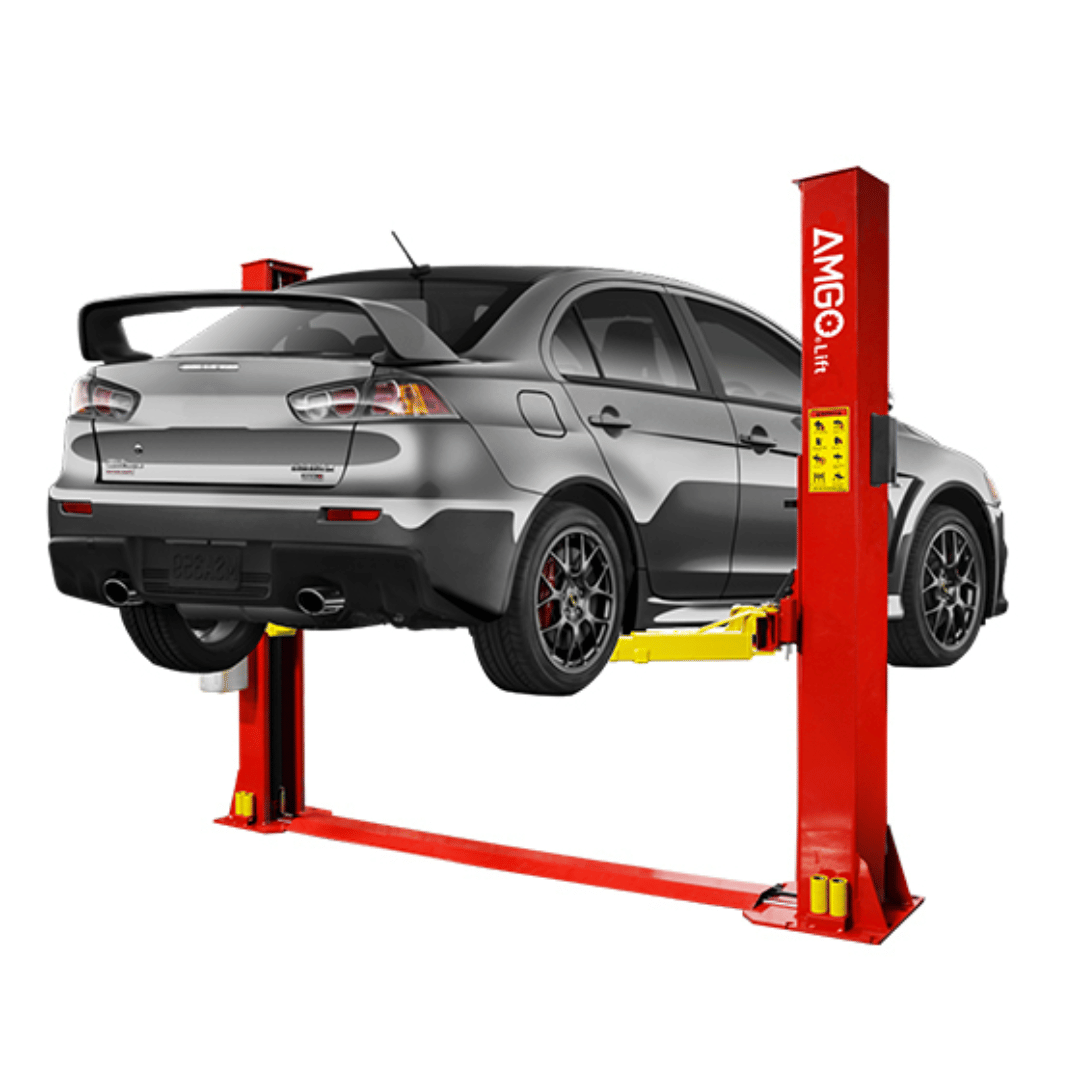

AMGO BP-9 is equipped with a dual safety lock structure and a single-point manual lock release mechanism, ensuring both safe and comfortable operation. The base plate design provides shorter columns to accommodate ceiling height 9ft or higher. Its symmetric 3-stage retractable arms offer large swing ranges to accommodate varying vehicles weighing up to 9000lbs.

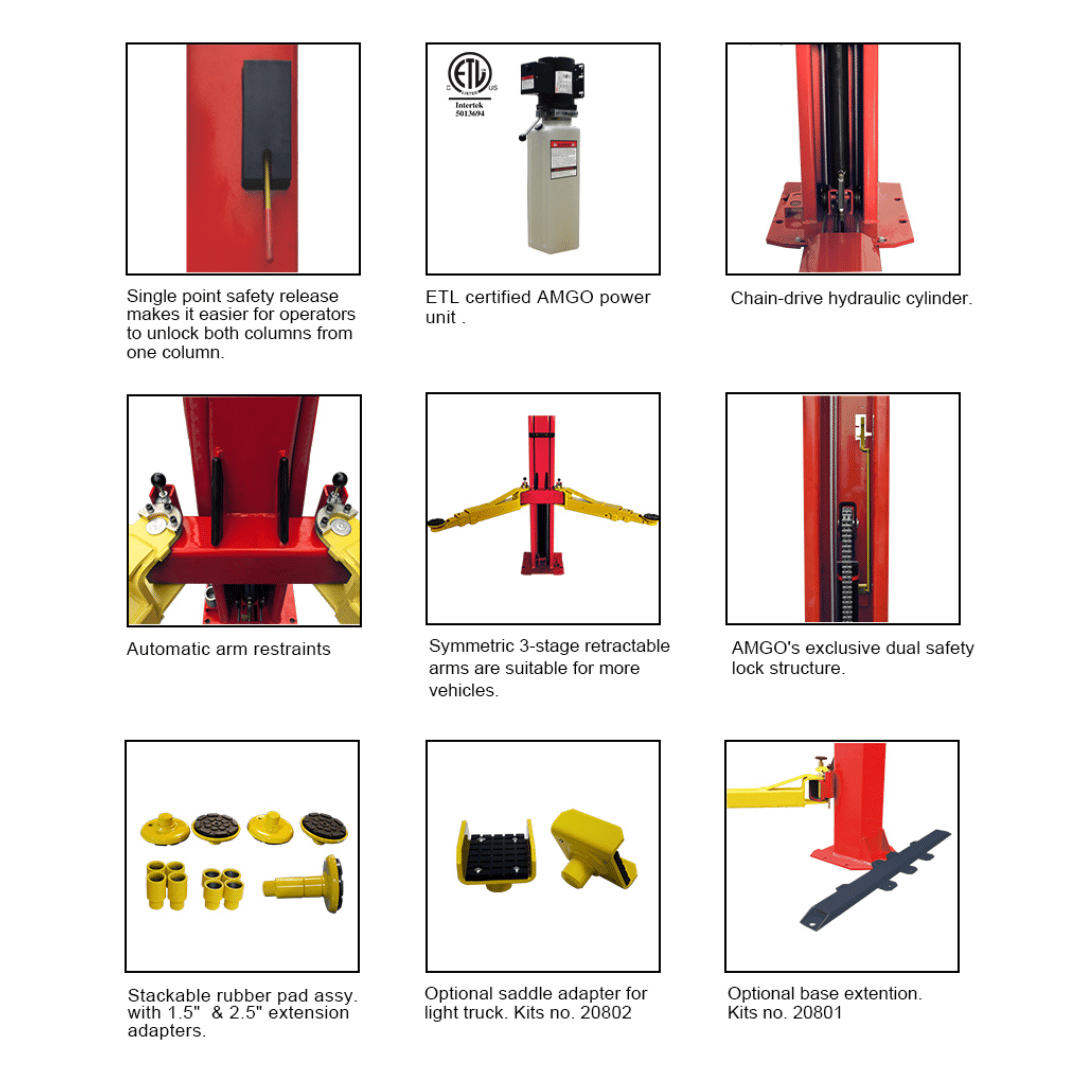

Product Features
- Lifting capacity: 9,000 lbs.
- Symmetric four 3-stage retractable arms are suitable for more vehicles.
- Automatic arms restraint.
- Single-point manual safety lock release, unlocked both columns from one side.
- Dual-safety lock structure ensures additional safety.
- Self-lubricating UHMW Polyethylene sliders.
- Areo sync cables come as standard.
- Comes with detachable toe guard and tool tray.

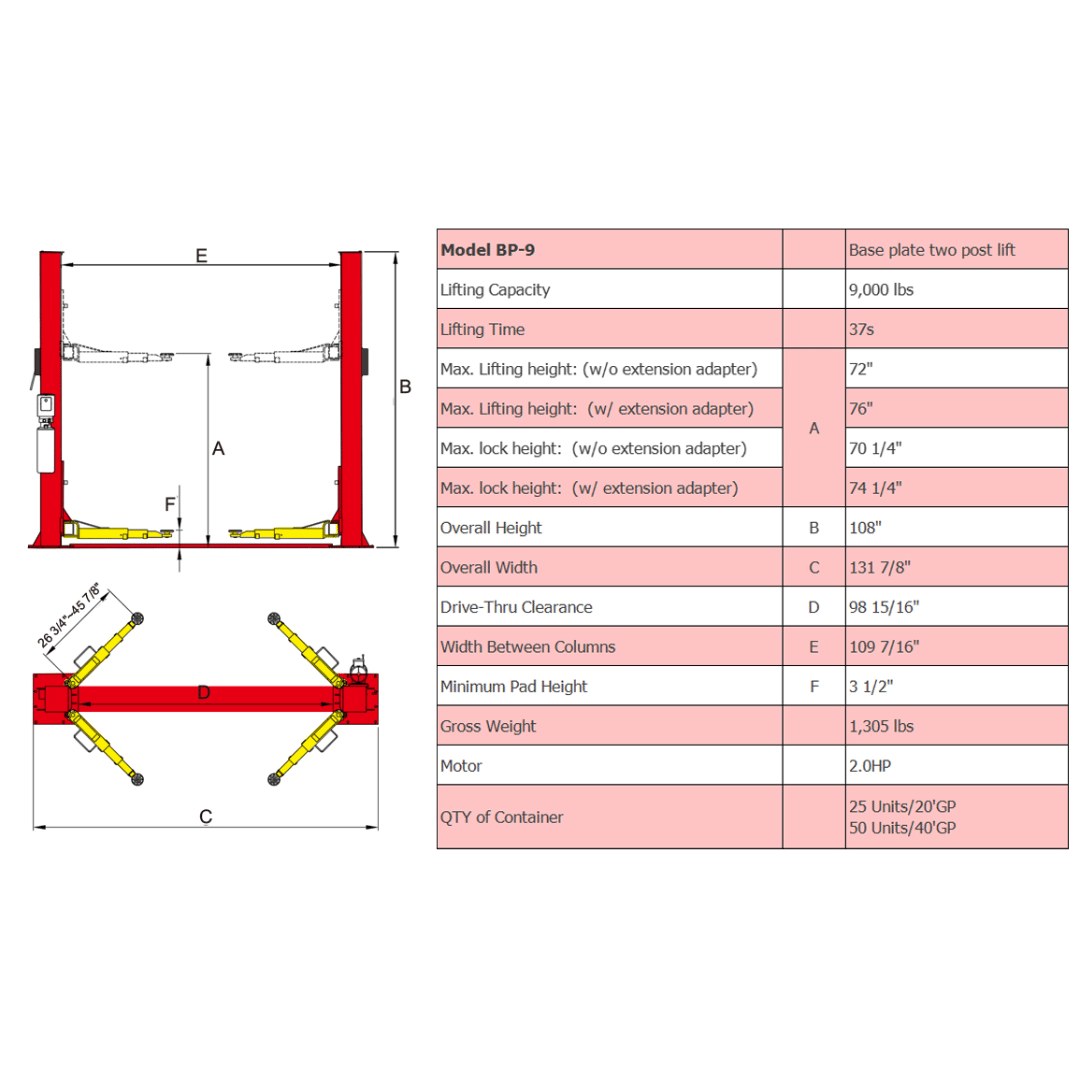

Product Specifications
| Model | BP-9 |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 37S |
| A: Max. Lifting Height: (w/o extension adapter) | 72″ |
| A: Max. Lifting Height: (w/ extension adapter) | 76″ |
| A: Max. Lock Height: (w/o extension adapter) | 70 1/4″ |
| A: Max. Lock Height: (w/ extension adapter) | 74 1/4″ |
| B: Overall Height | 108″ |
| C: Overall Width | 131 7/8″ |
| D: Drive Thru Clearance | 98 15/16″ |
| E: Width Between Columns | 109 7/16″ |
| F: Minimum Pad Height | 3 1/2″ |
| Motor | 2.0HP |
| Gross Weight | 1,305 lbs |

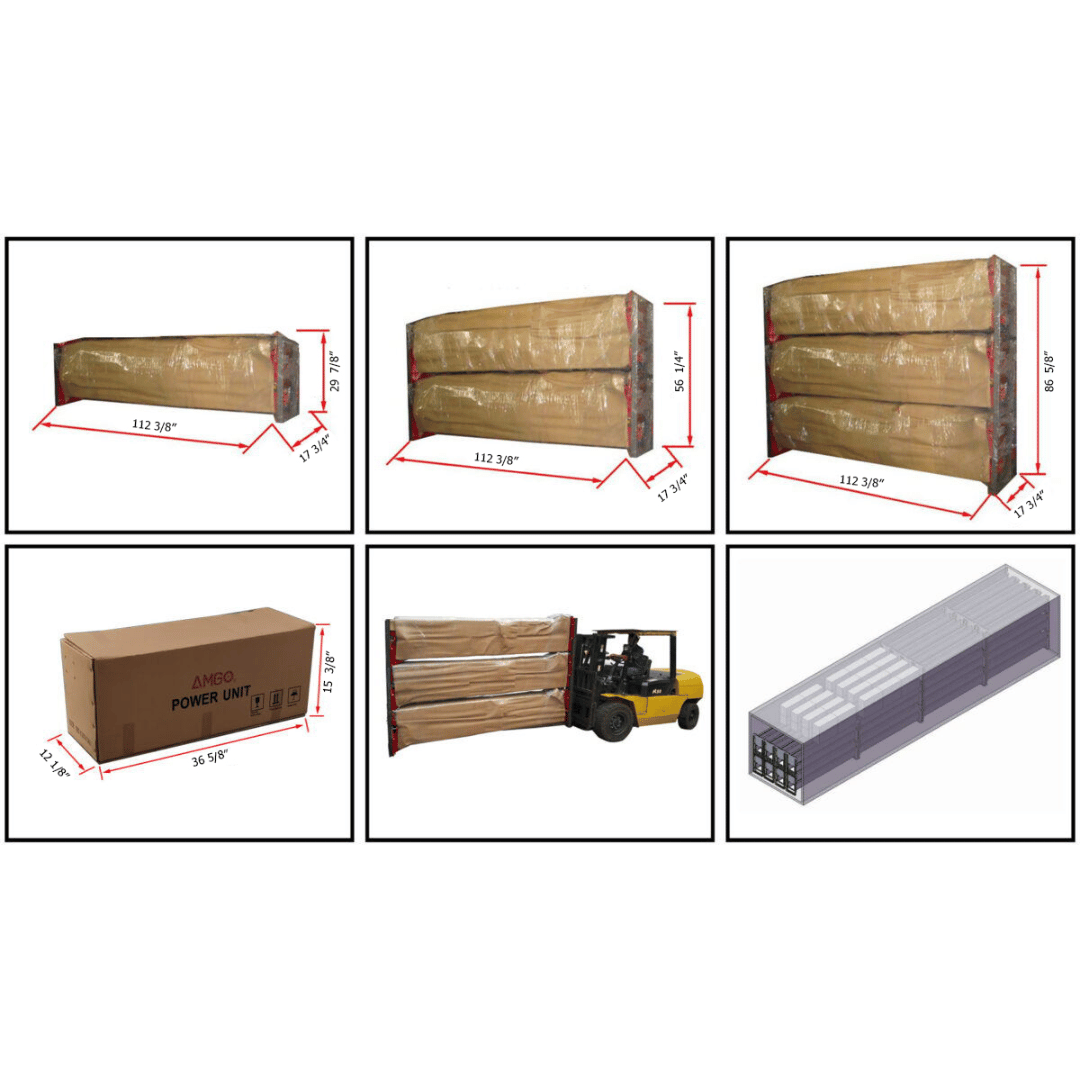

| QTY of Container | 25 Units/20’GP | 50 Units/40’GP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
Additional information
| Title | Default Title |
|---|
